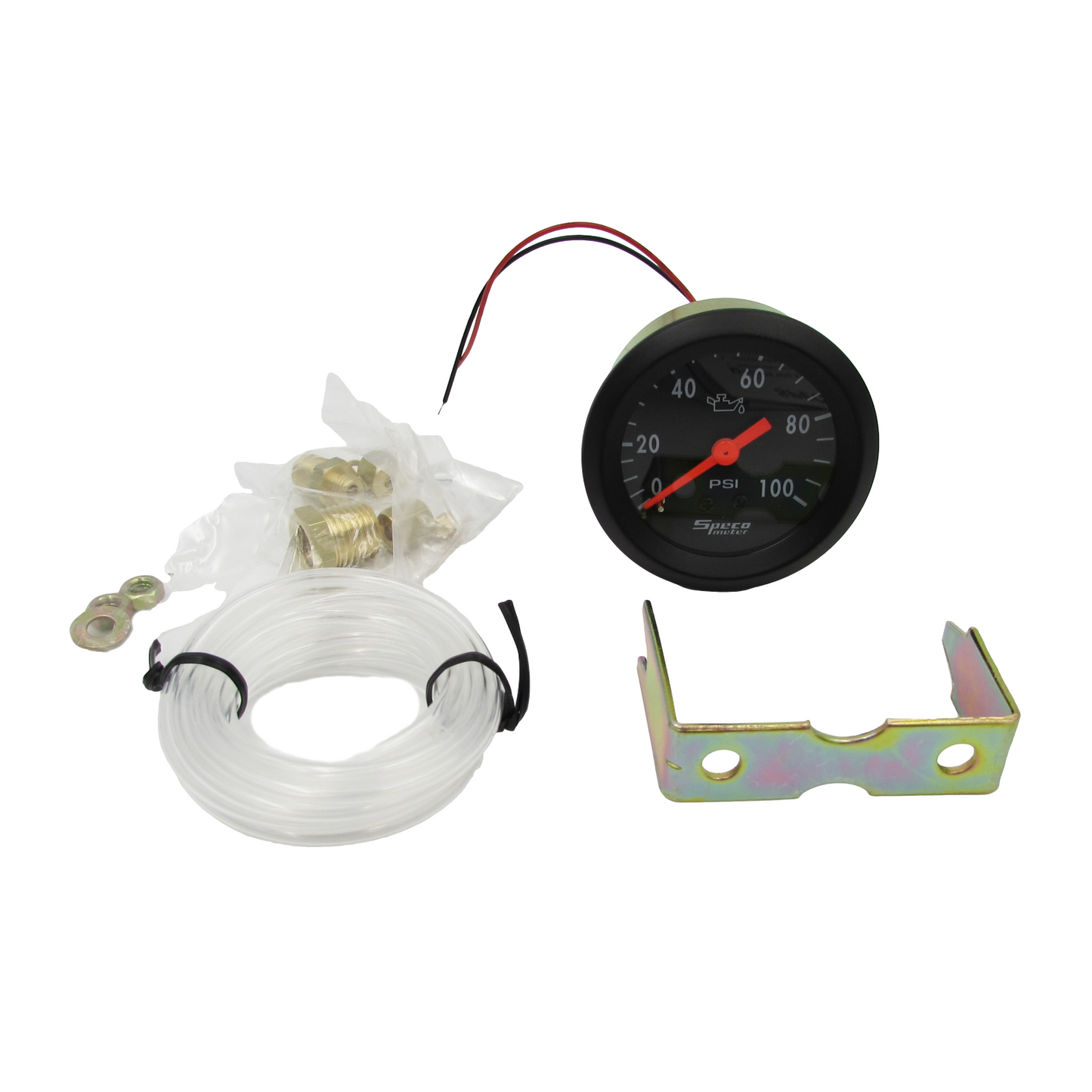

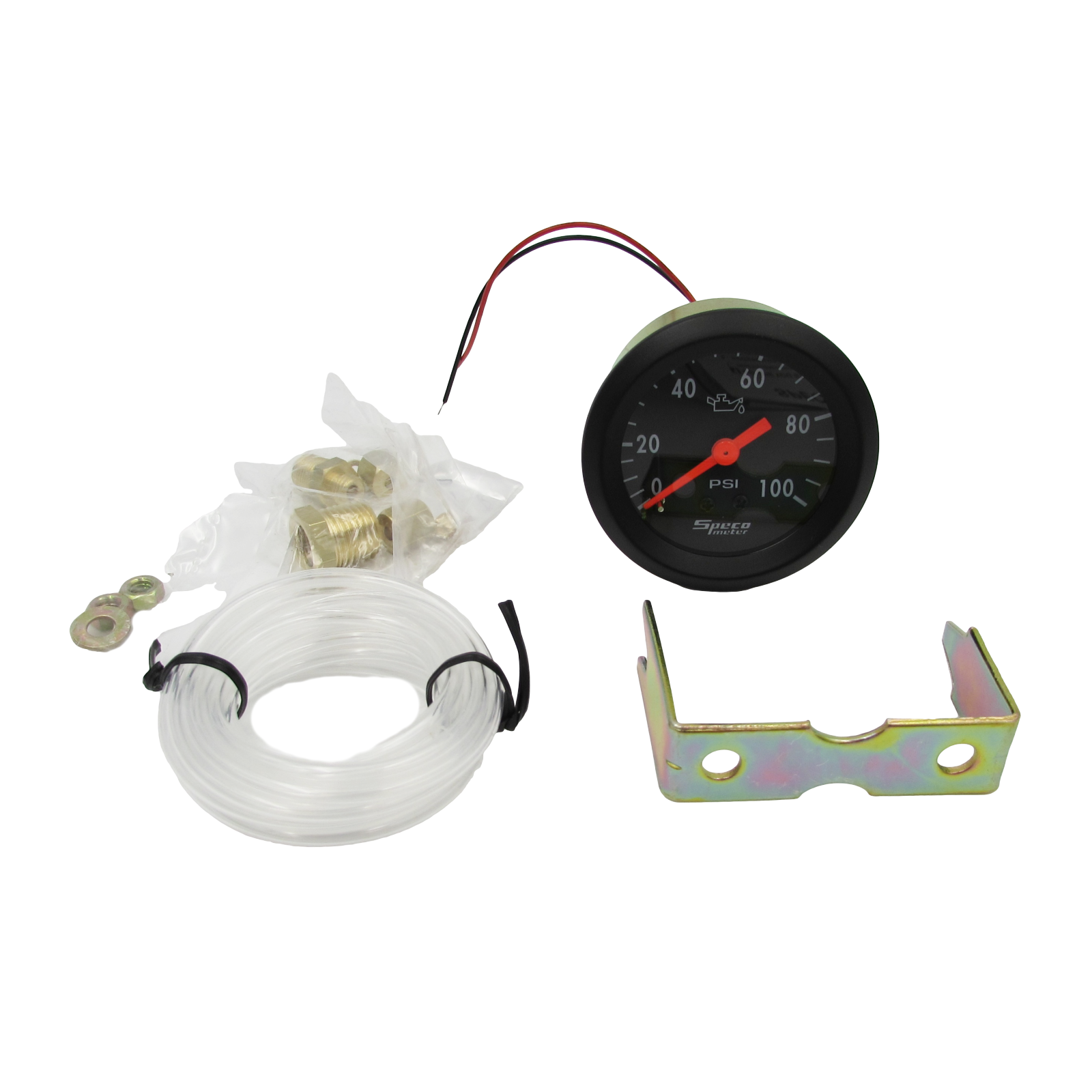

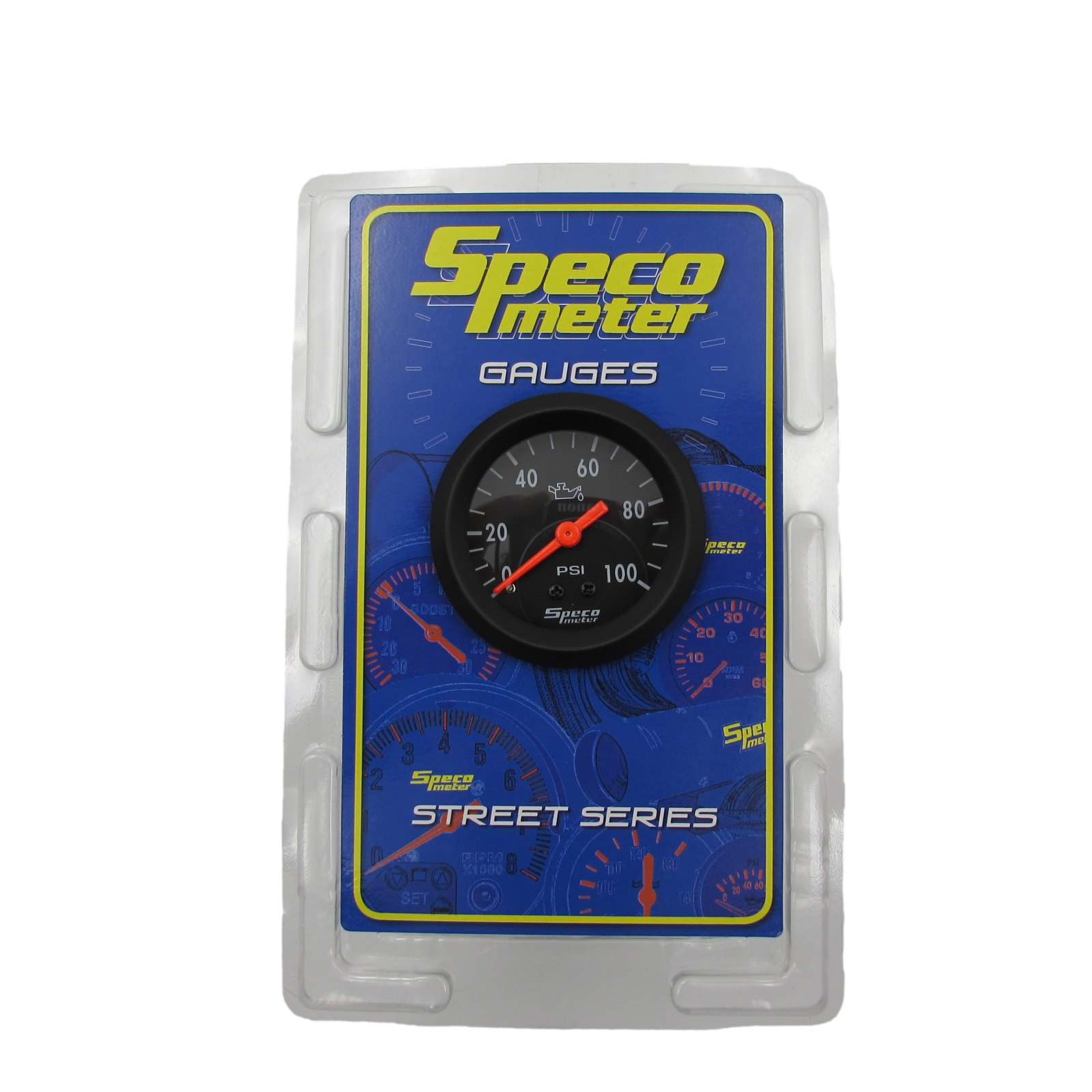

Speco Mechanical Oil Pressure Gauge 0-100 PSI 52mm 2" Black Dial Street Series 533-16

• Accurate Readings – Displays oil pressure from 0 to 100 PSI with mechanical precision and clear dial markings.
• Complete Installation Kit – Includes brass fittings and 6-foot (1.8m) nylon oil line / capillary tube with 1/8" NPT thread (1/4" adaptor included).
• Versatile Mounting Options – Mount in-dash, under-dash, or in a top-mount pod (pod and plate sold separately).

Specifications

• Gauge Diameter: 2 inch
• Pressure Range: 0 to 100 PSI
• Display: Black face with white markers
• Lighting: Internal backlight for night visibility
• Line Length: 6 feet (1.8 metres)
• Fittings: 1/8" NPT brass nipple, 1/4" adaptor included
• Includes: Nylon capillary tube, fittings, sender components
• Warranty: 2 years

Fitment & Installation Notes

This is a universal gauge requiring basic mechanical knowledge. Capillary tube must not come in contact with heat sources or it melt, crack or leak. Nylon capillary tube can be replaced with copper line if heat is going to be an issue. Additional tools, parts or minor modifications may be required depending on your vehicle setup. Not considered a simple plug and play installation, video for education purposes only and not advice.
