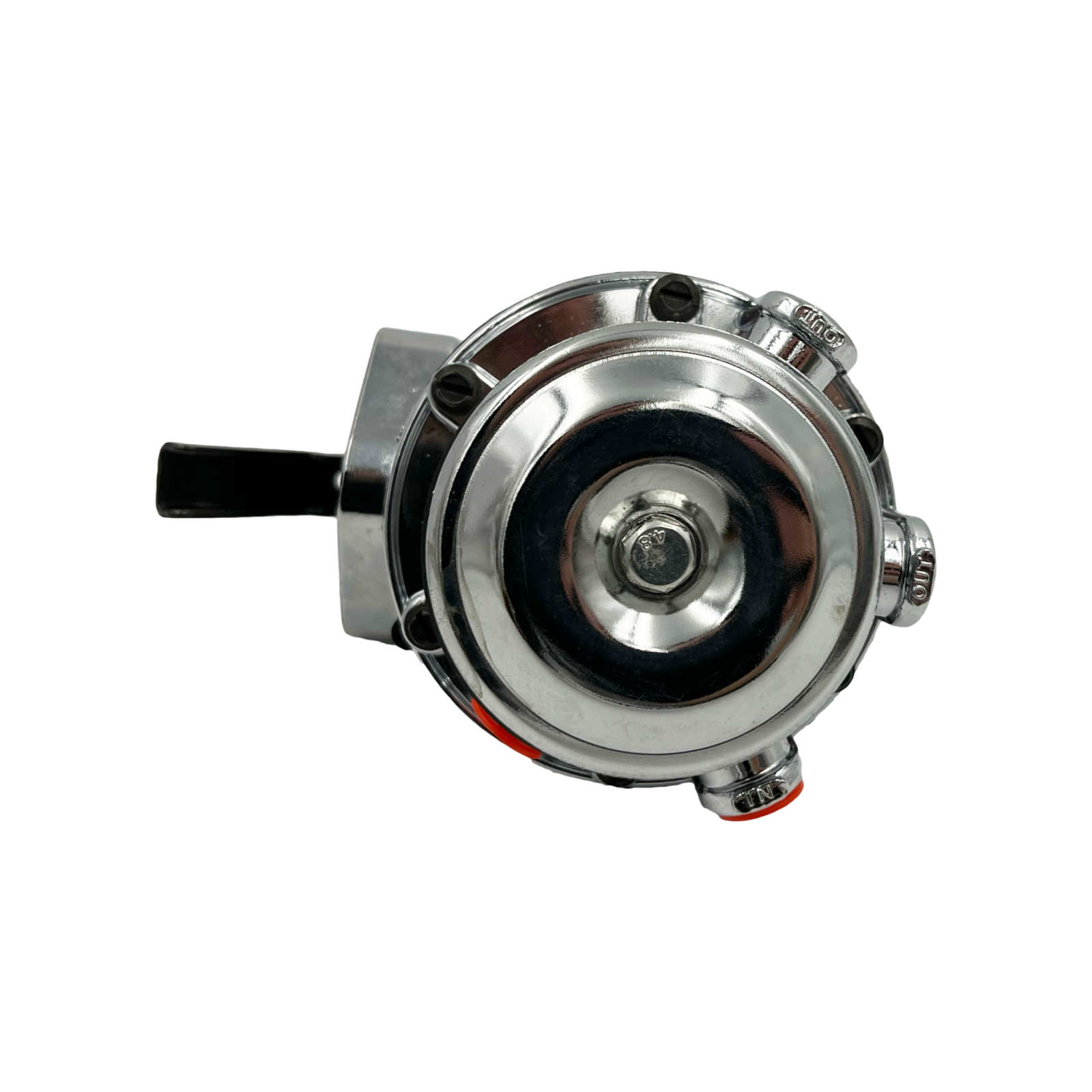

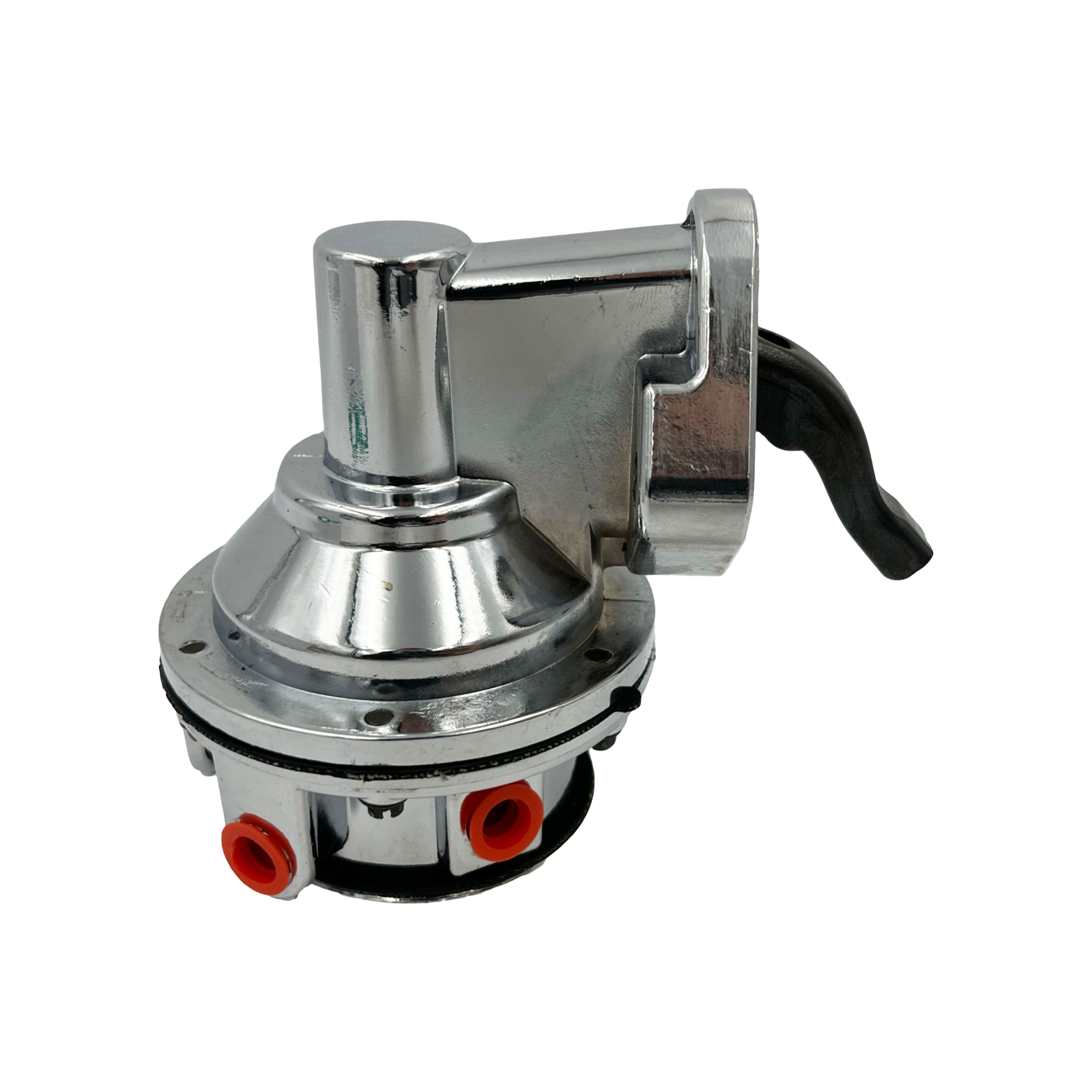

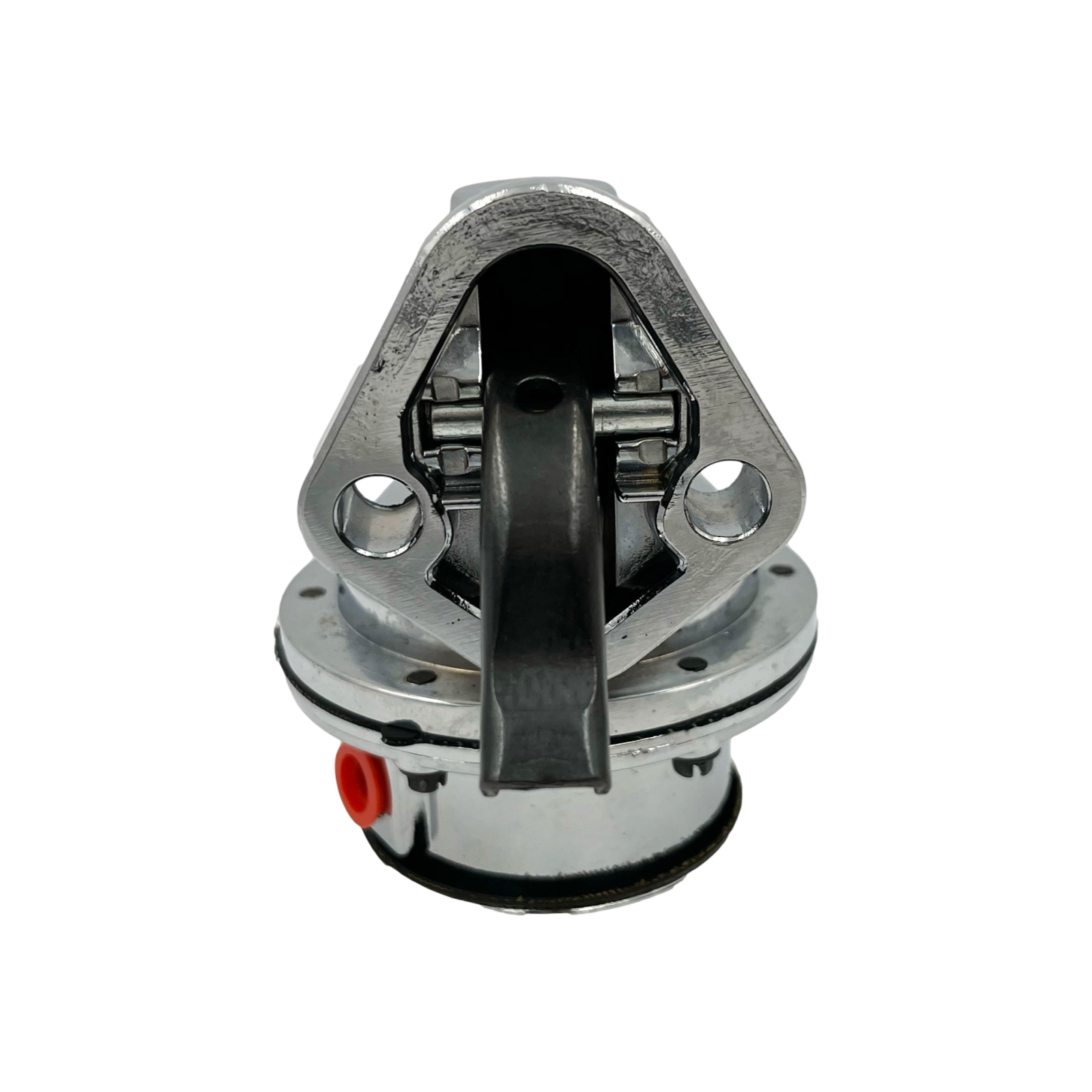

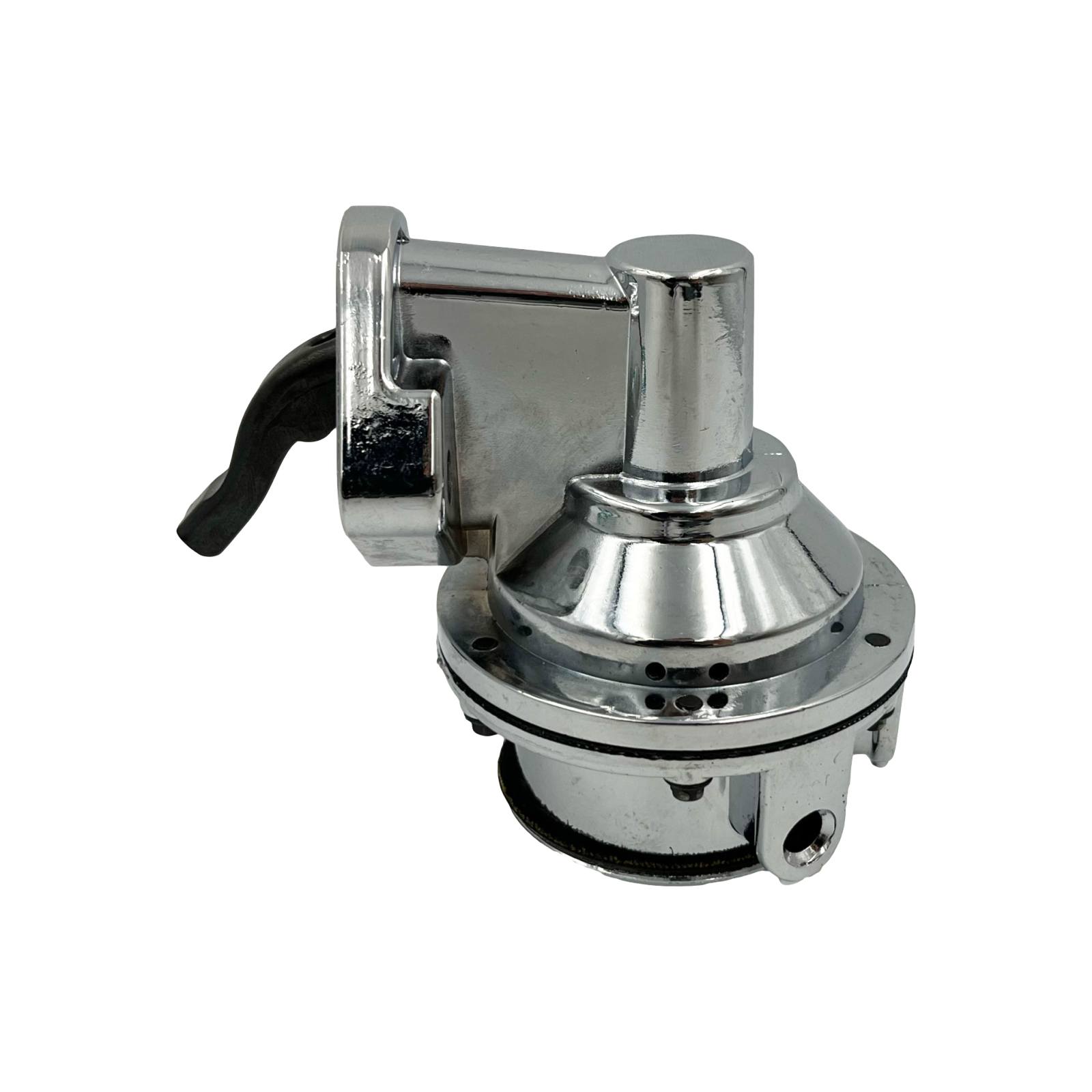

SBC Small Block Chevy 262-400 Mechanical Fuel Pump 6 PSI 1/4" NPT 80 GPH

• Mechanical fuel pump for Small Block Chevrolet engines using a carburettor.
• Suitable for stock and street performance engines up to 400 HP.
• High flow capability with free flow delivery up to 80 GPH.

This mechanical fuel pump is designed to suit Small Block Chevrolet engines that require a cam driven fuel pump. It is intended for carburetted applications and is suitable for standard and street performance builds where consistent fuel delivery is required.

The pump features 1/4 inch NPT inlet and outlet ports and is supplied brand new with a mounting gasket. It is not compatible with alcohol or methanol fuels and is not designed for fuel injection systems. The housing is plated for corrosion resistance but is engineered for function rather than show finish.

Specifications

• Product type: Mechanical fuel pump
• Engine compatibility: Small Block Chevrolet 262 to 400
• Recommended use: Stock and street performance engines
• Maximum engine output: Up to 400 HP
• Fuel pressure: 6PSI with 8 PSI shut-off
• Flow rate: Up to 80 GPH free flow
• Inlet and outlet ports: 1/4 inch NPT
• Fuel compatibility: Petrol only, not suitable for alcohol or methanol
• EFI compatibility: Not suitable for fuel injection systems

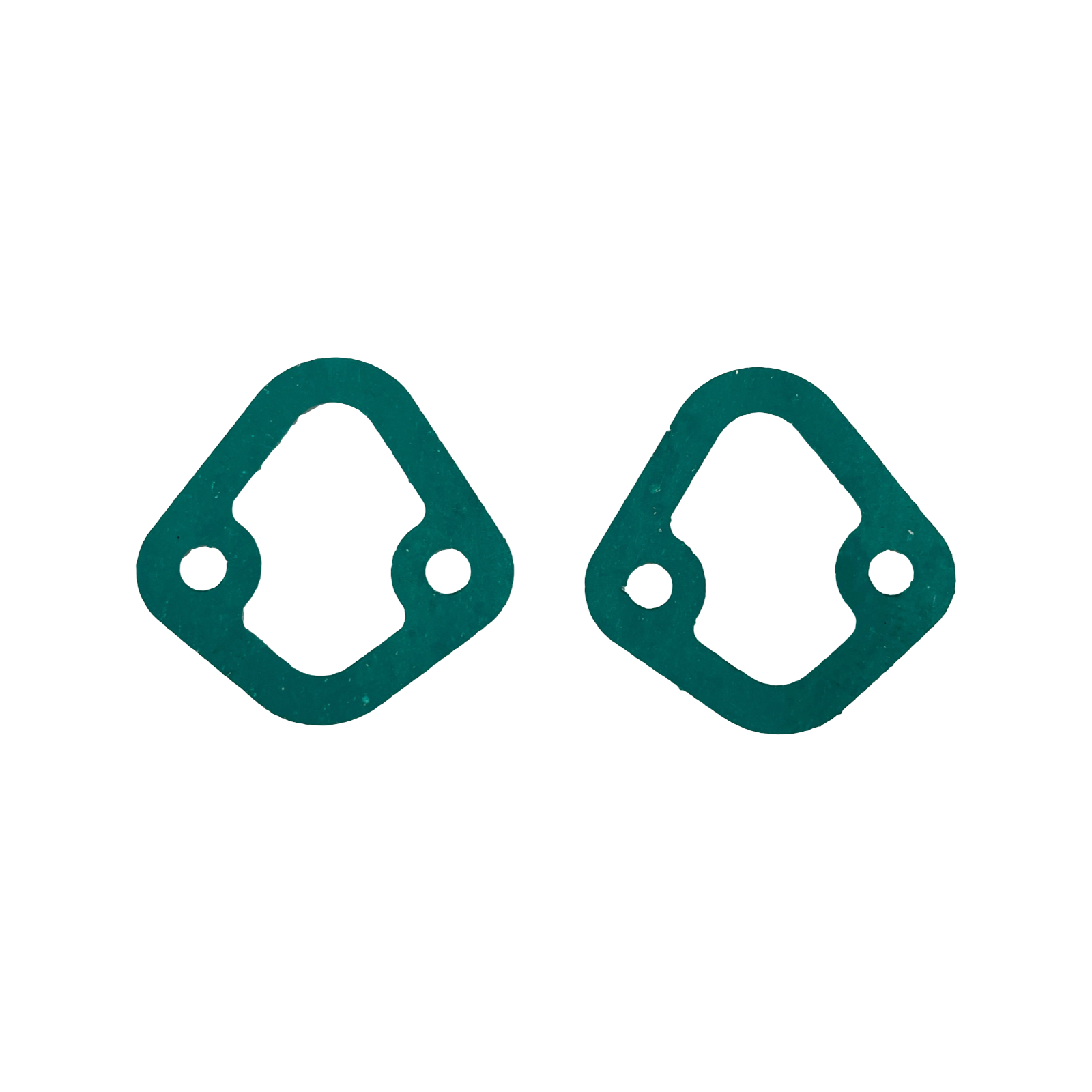

• Includes: Mounting gasket
• Installation note: Fuel pressure regulator recommended to prevent carburettor flooding
