Chrome 30° Thermostat Housing & Tridon 82°C Thermostat Late SBC BBC Chevrolet V8 1966-1975

• Housing and thermostat together - everything the water neck job needs in one order
• Suits Chevrolet V8s 1966 to 1975, small block and big block
• Tridon TT2000-180 82°C high flow thermostat - up to 30% more coolant flow than the TT1 series, with an air bleed jiggle pin

This O-ring style chrome thermostat housing (water neck) from GASO Performance Products is designed for 1966 to 1975 Chevrolet V8 engines, including small block and big block applications. Precision die-cast zinc construction with a show-quality chrome finish gives corrosion resistance and a clean look. The O-ring seal replaces traditional paper gaskets, the extra-thick 12mm base resists warping under high clamping loads, and the 30-degree angled spout improves hose routing.

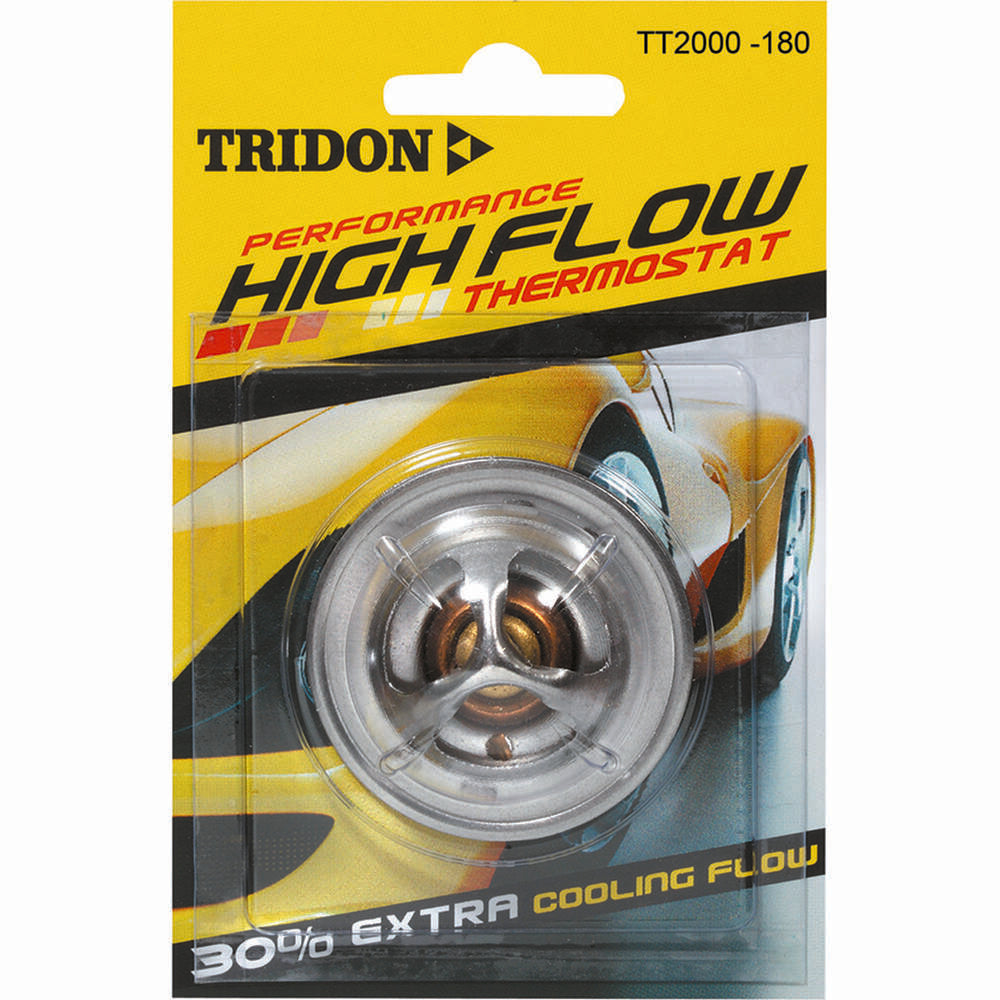

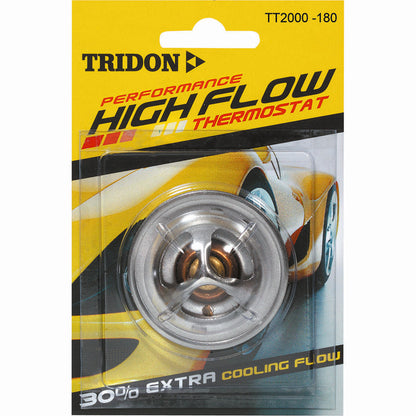

Supplied with the Tridon TT2000-180 high flow thermostat, which opens at 82°C (180°F) and has an enlarged valve opening for up to 30% greater coolant flow than conventional Tridon TT1 series thermostats. Its integrated jiggle pin assists air bleeding when filling the system. Tridon list this thermostat as suiting Small Block Chevy 283, 307, 327, 350, 400 and Big Block Chevy 396, 427, 454.

What you receive

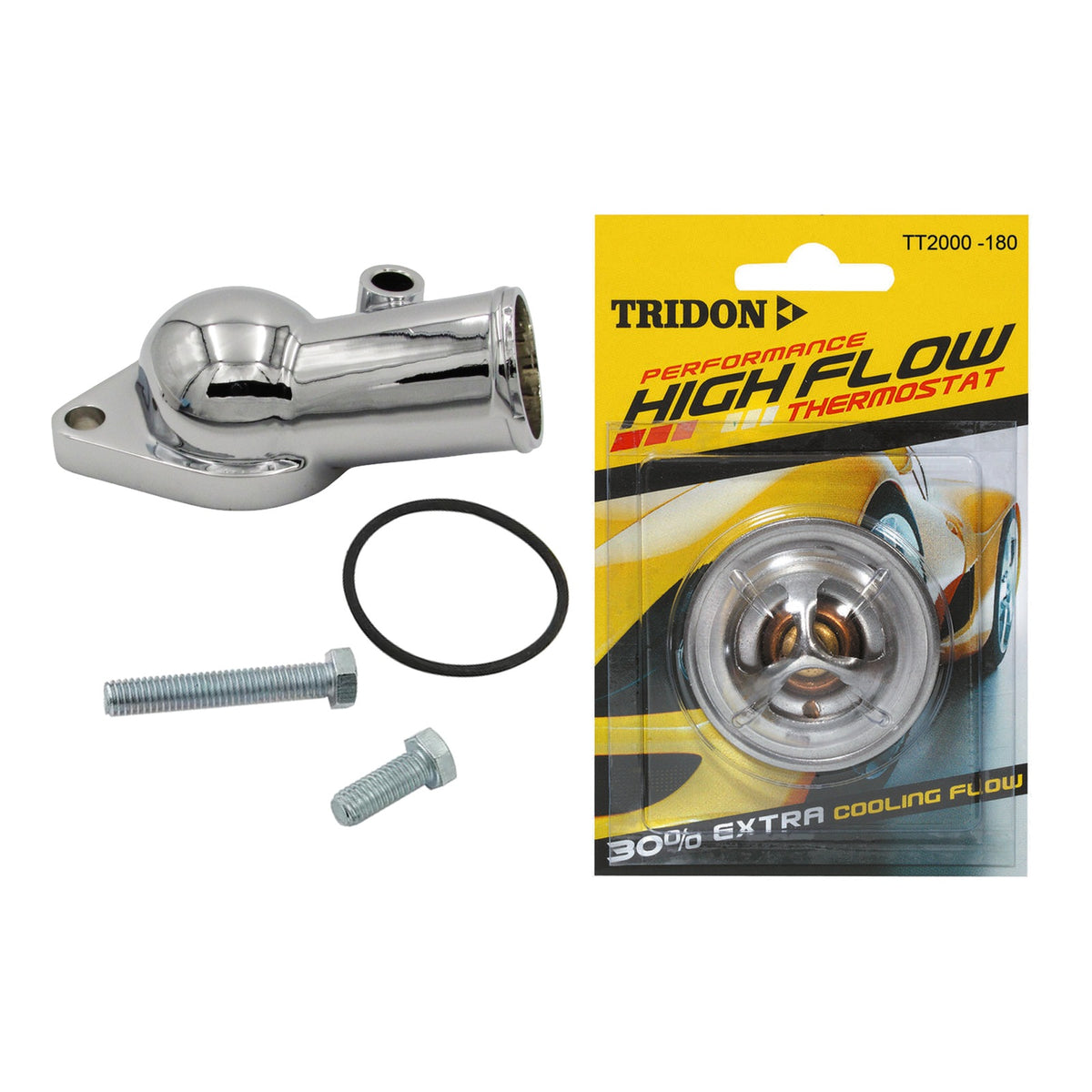

• 1 x GASO chrome 30° thermostat housing (GPP-3873), with O-ring and mounting bolts
• 1 x Tridon TT2000-180 82°C high flow thermostat, 54mm flange

Housing specifications

• Application: 1966-1975 Chevrolet V8, Small Block and Big Block
• Bolt spacing: 3-1/4" (82.5mm) centre-to-centre
• Outlet angle: 30°
• Outlet size: 1-1/2"
• Material: zinc die-cast, polished and chrome plated
• Seal type: O-ring (included)

Note: the taller mounting ear is designed for the longer bolt; it is not a heater bypass port.

Won't suit Cleveland. See Tridon TT2023 or Dayco DT14CBP bypass style.
