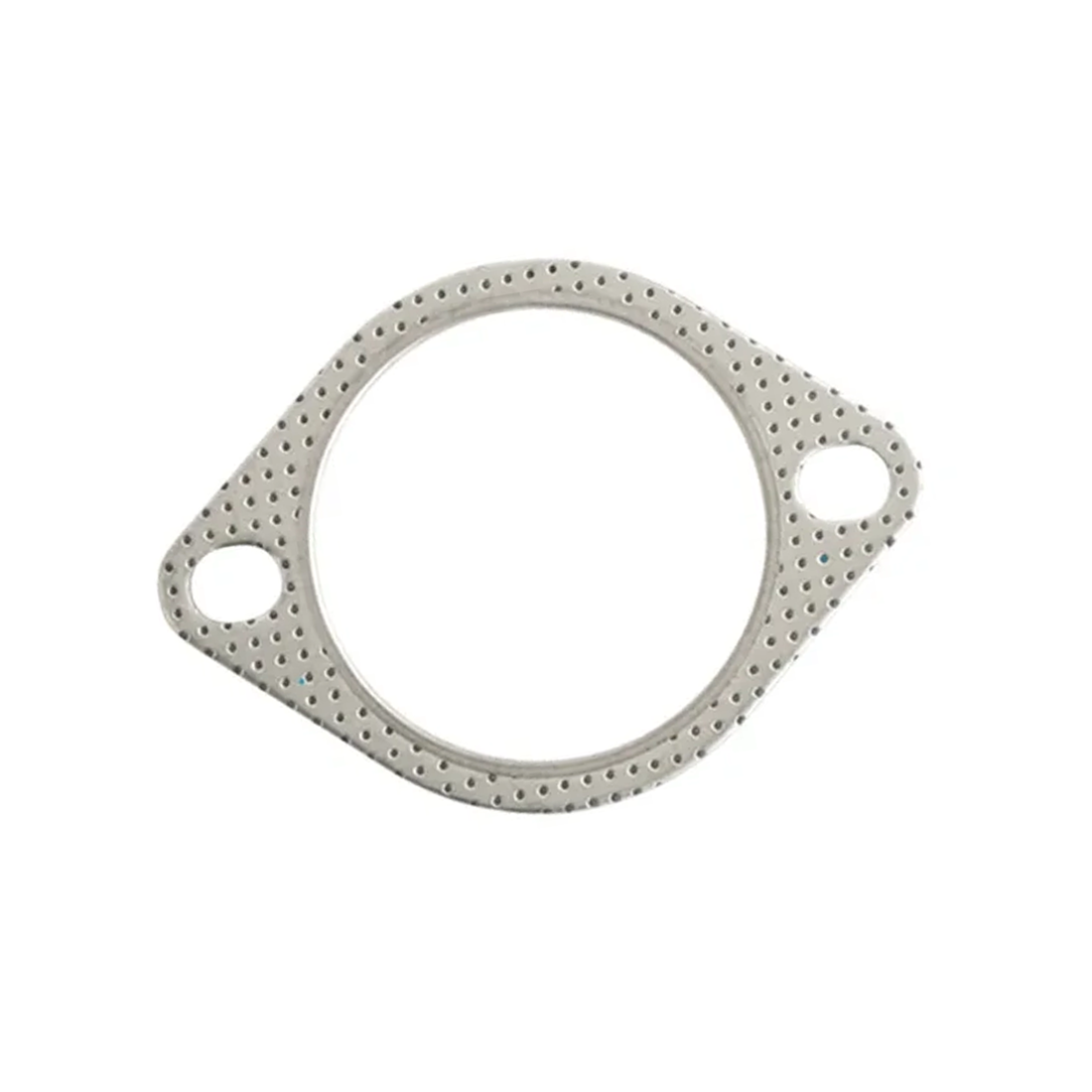

2-Bolt Exhaust Flange Gasket – 3" Inch I.D. 105mm Bolt Holes (Holden GMG093-76)

• Designed for 3" (76mm) inside diameter 2-bolt exhaust flange plates
• 105mm bolt hole centre-to-centre spacing for Holden Commodore applications.
• Heavy-duty construction designed for durability and high-temperature sealing.


This 2-bolt exhaust flange gasket is designed to suit 3" exhaust systems. Featuring a 76mm internal diameter and 105mm bolt centre-to-centre spacing. With an overall length of 134mm and width of 98mm, it provides a precise fit for Holden Commodore models and other vehicles using a similar flange pattern. Manufactured with heavy-duty materials, it offers reliable sealing performance under heat, pressure, and vibration. Ideal for use in repairs, upgrades, or custom exhaust builds where a strong, leak-free connection is essential. Also known as GMG093-76

Matching Flange Plate is Part No. GPP-8134

• Flange Style: 2-Bolt
• Inside Diameter: 76mm (3")
• Bolt Hole Spacing: 105mm centre-to-centre
• Bolt Hole Diameter: 11.3mm
• Overall Dimensions: 134mm (L) x 98mm (W)
• Material: DSF
