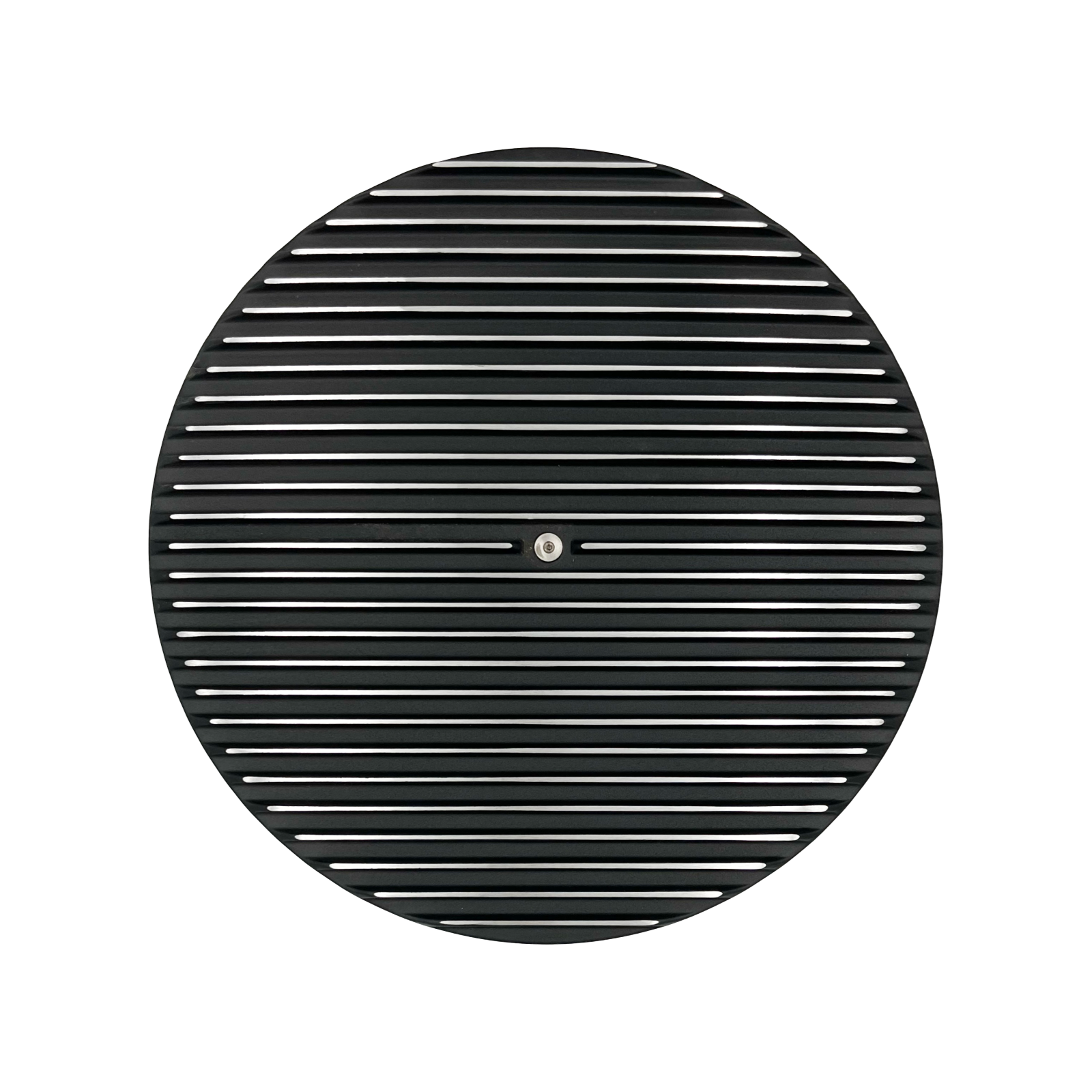

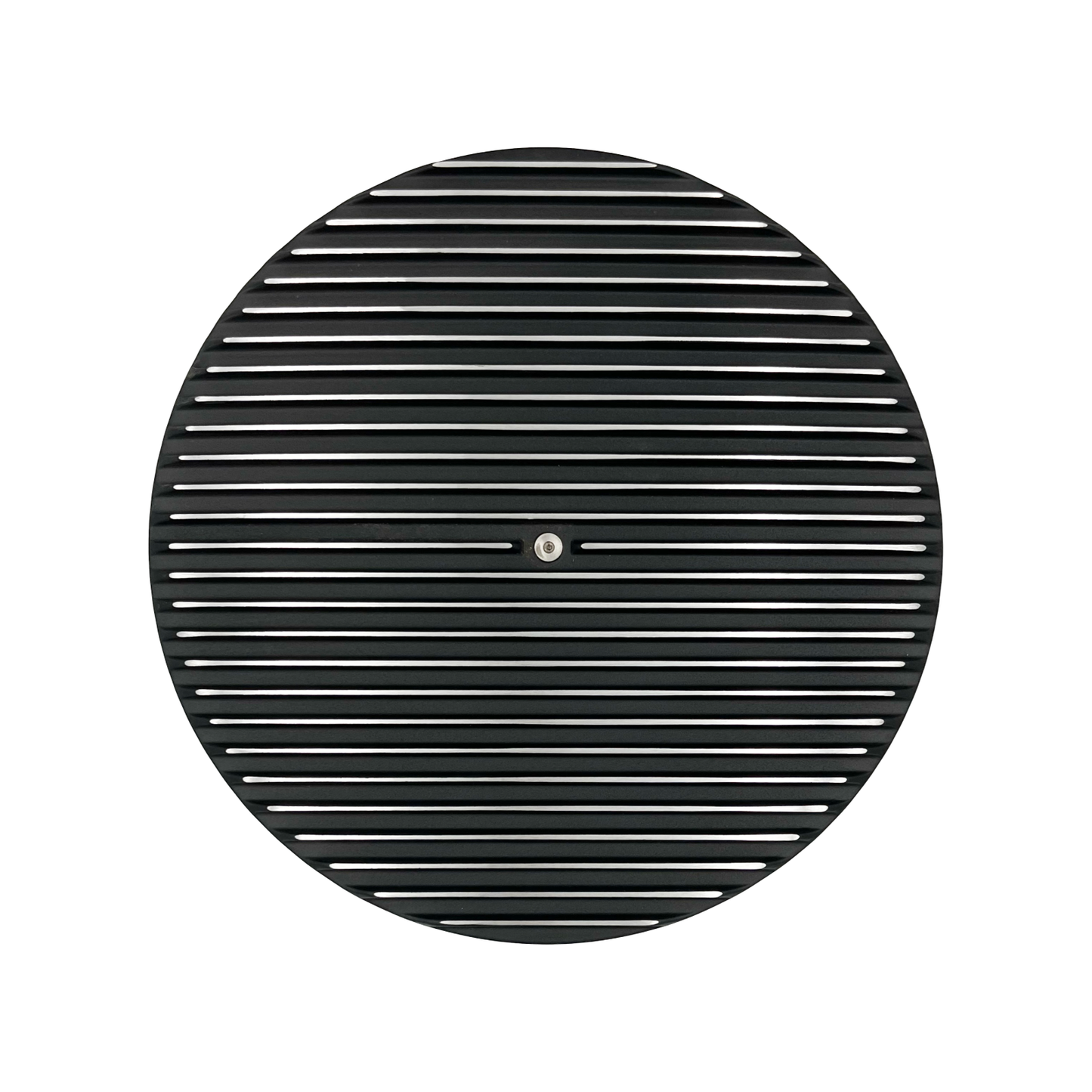

Full finned round air cleaner assembly with satin black aluminium finish.
Recessed base to suit 5-1/8 inch carburettor and throttle body necks.
EDP coated for an even, continuous and rust resistant finish.

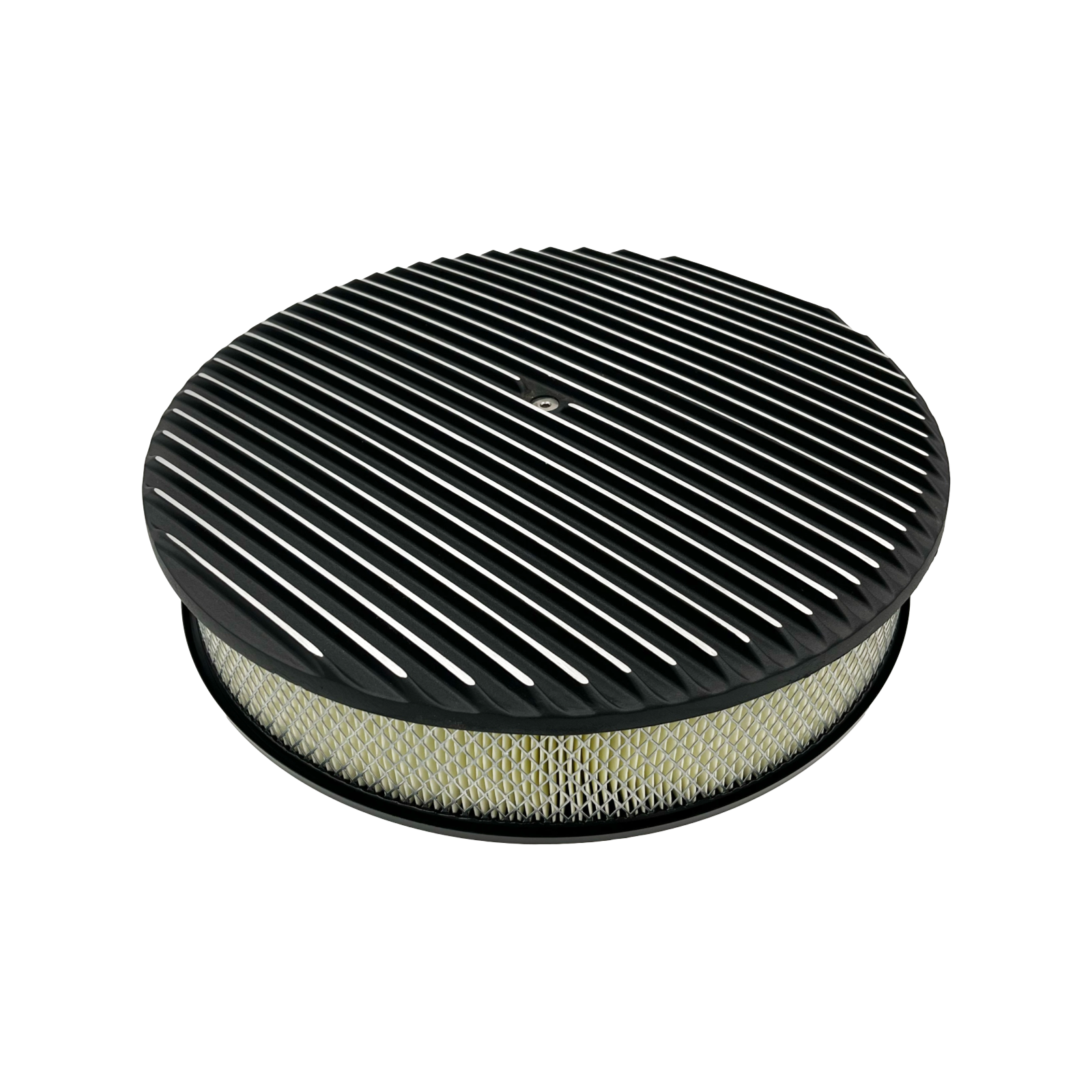

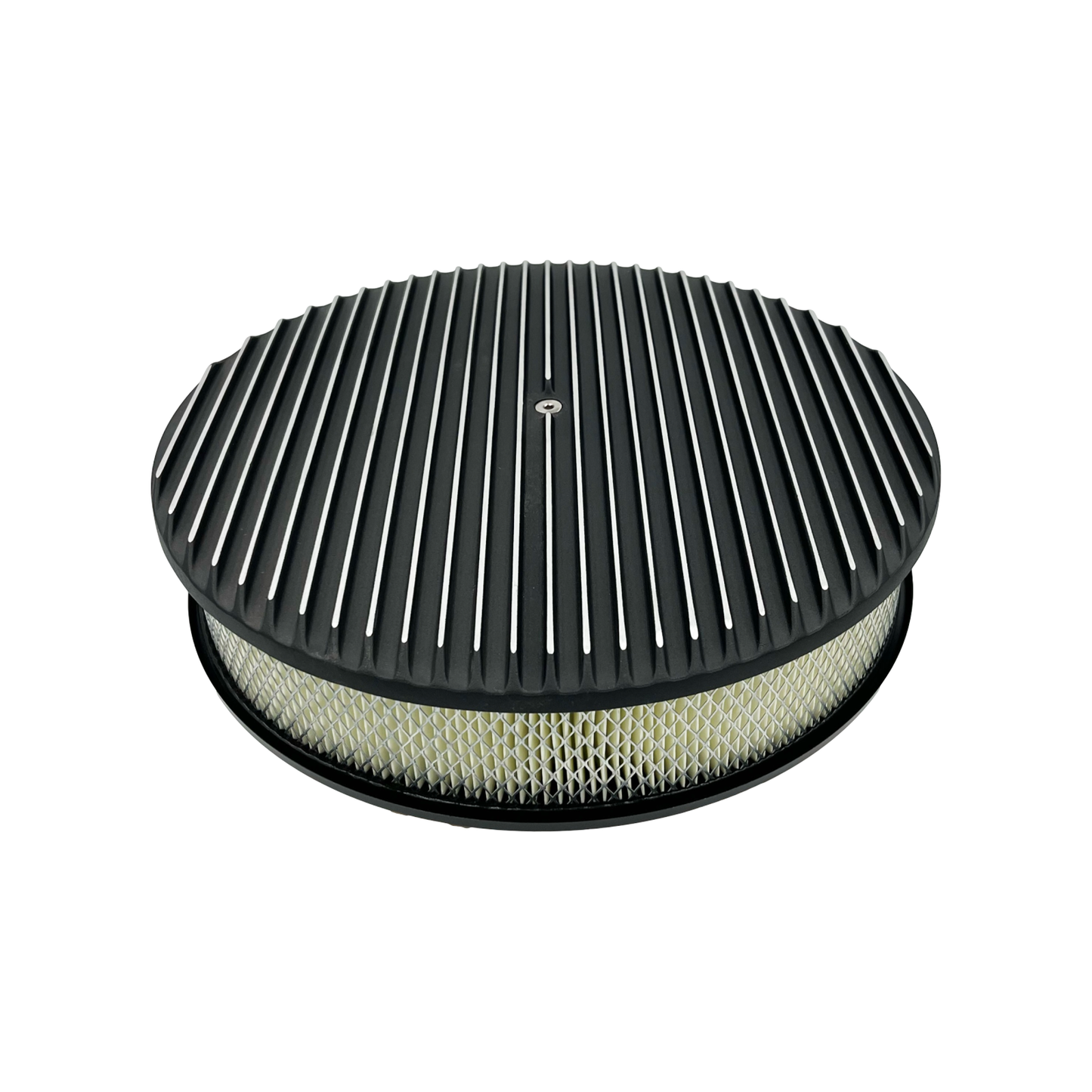

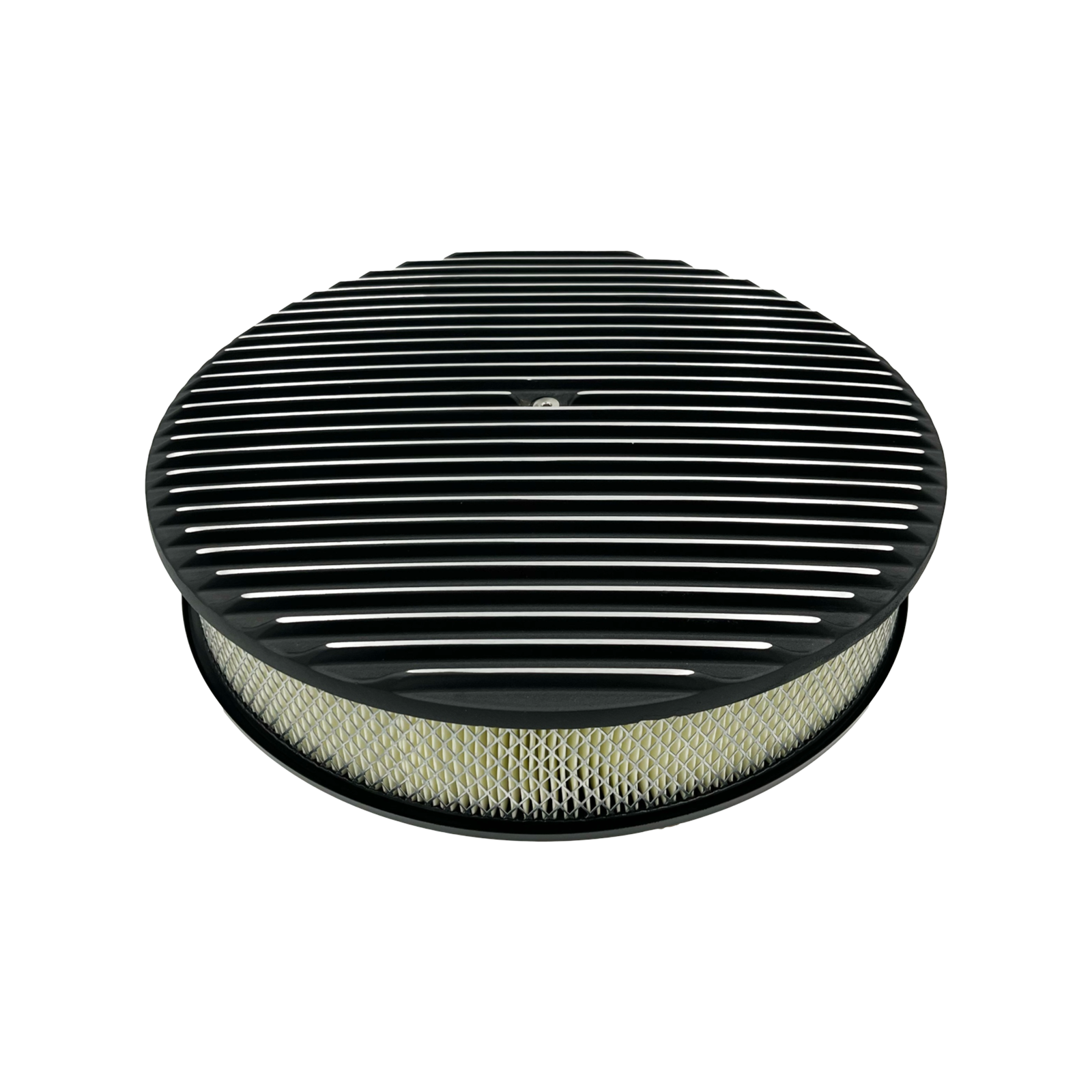

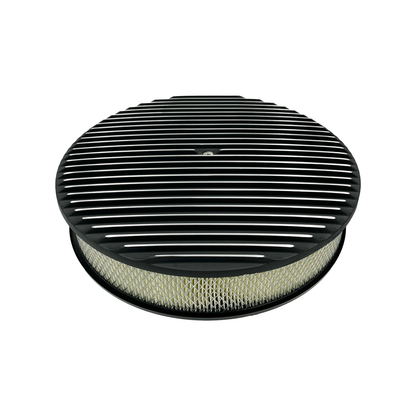

This round 14 inch air cleaner assembly features a full finned aluminium top and a recessed base designed to fit carburettors and throttle body injection units with a 5-1/8 inch inlet flange. The electronically applied EDP coating provides consistent coverage and corrosion resistance, making it suitable for long term street and performance use.

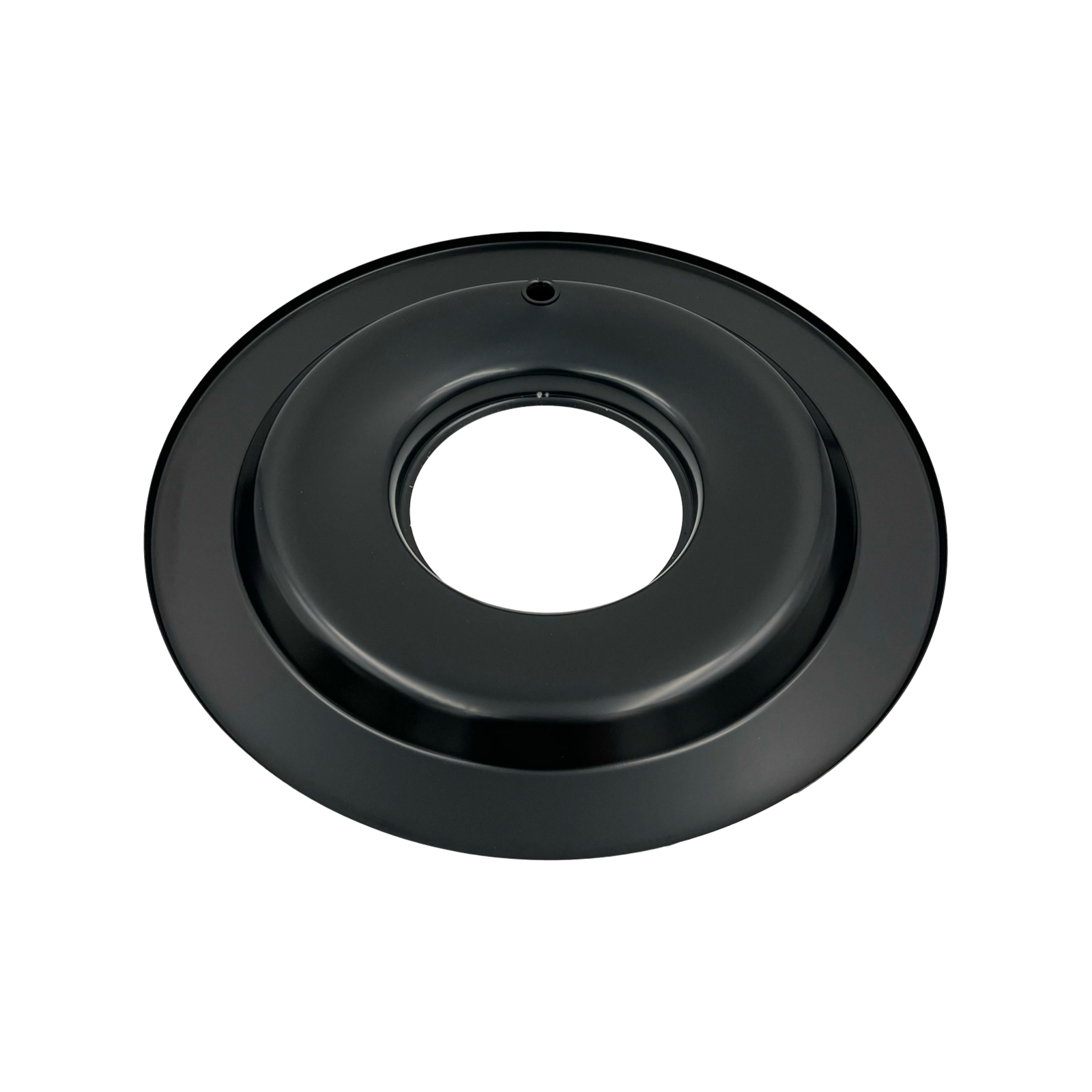

The recessed base provides increased bonnet clearance and is supplied with a paper filter element. Clearance above the carburettor flange should be checked before installation, and some applications may require the use of an air cleaner riser to clear fuel inlets or electric choke mechanisms.
Specifications
Product type: Air cleaner assembly
Design: Full finned nostalgic retro
Material: Aluminium
Finish: Satin black, EDP coated
Diameter: 14 inch
Overall height: 3 inch

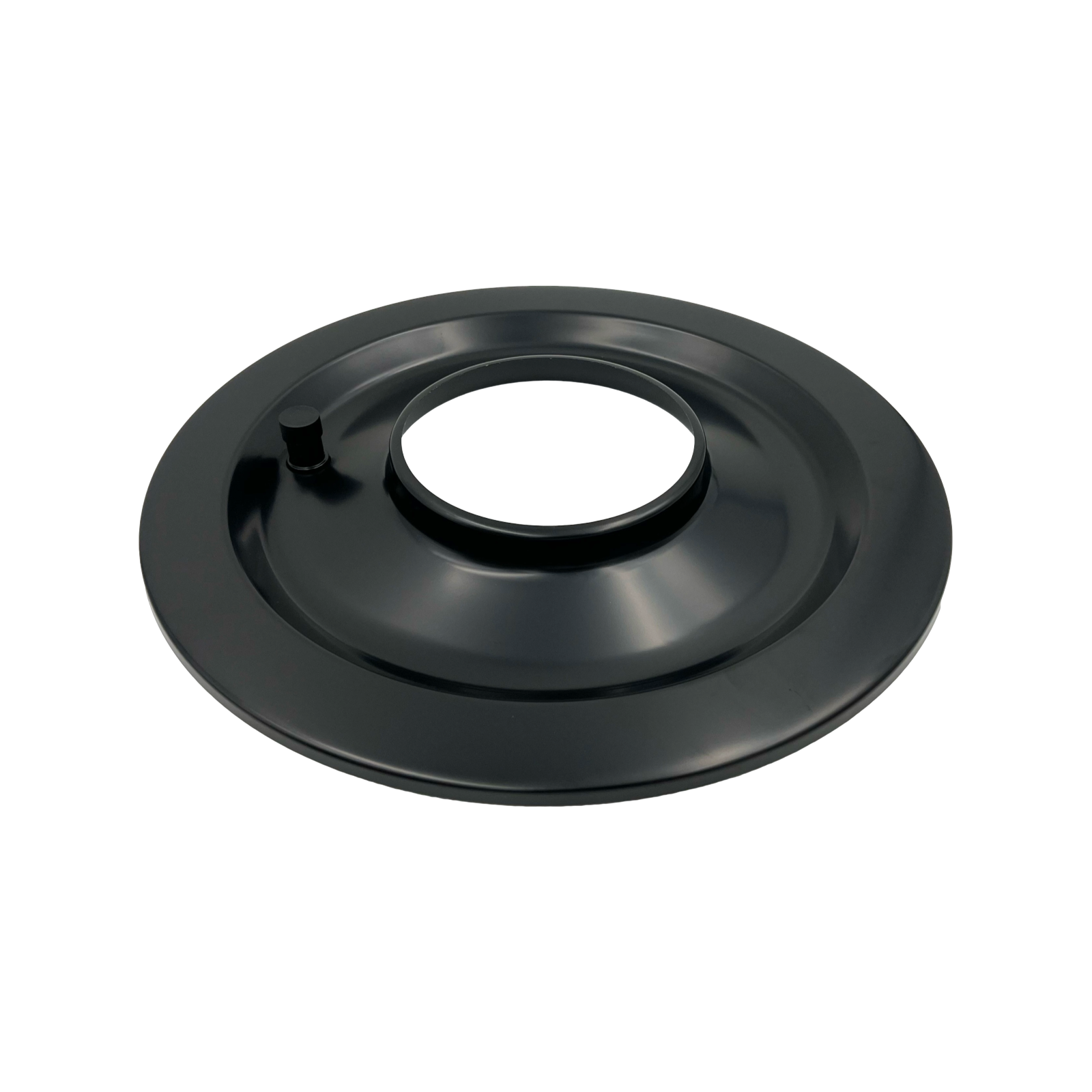

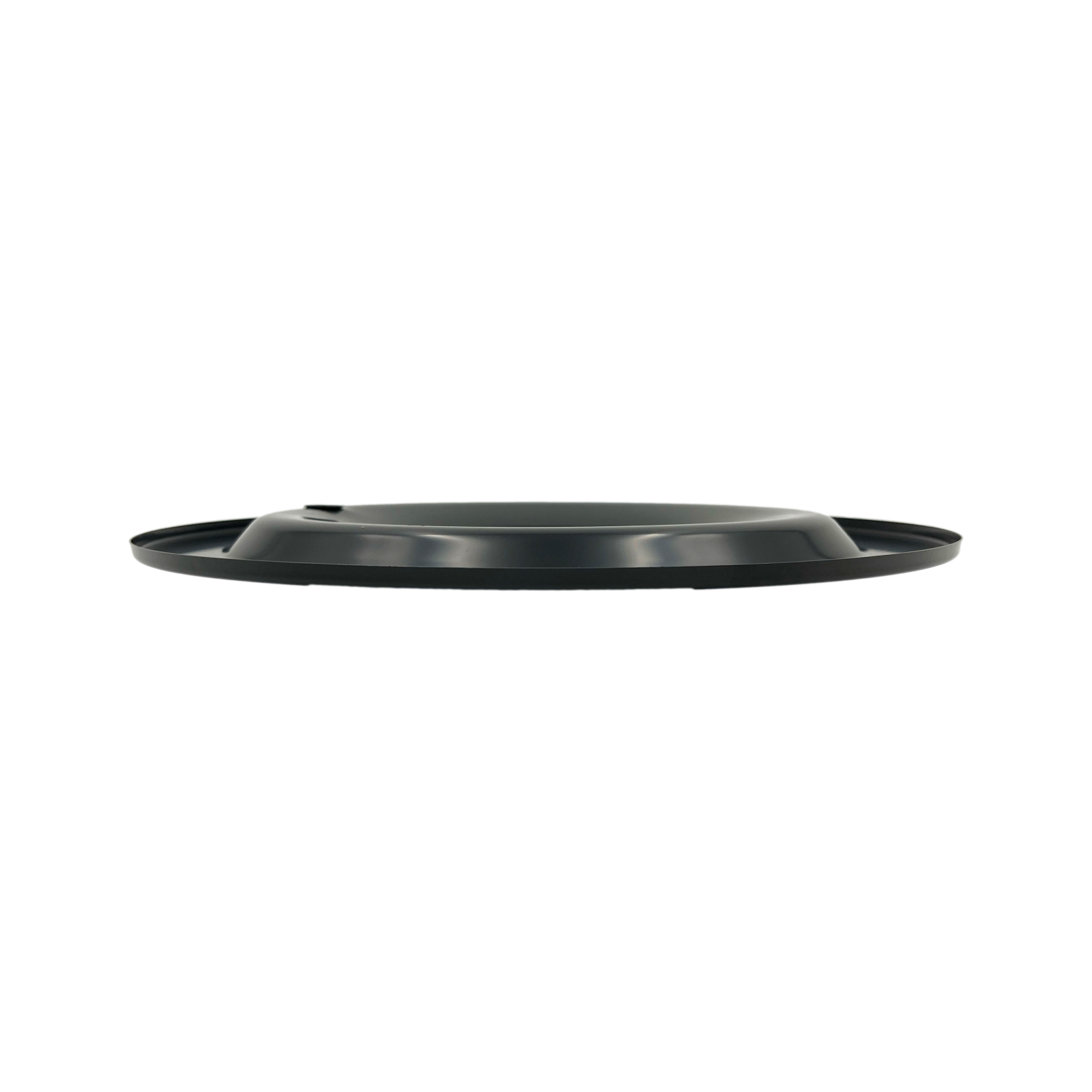

Base style: Recessed, 30 mm drop
Carburettor neck size: 5-1/8" inch (Holley, Edelbrock, Quadrajet)

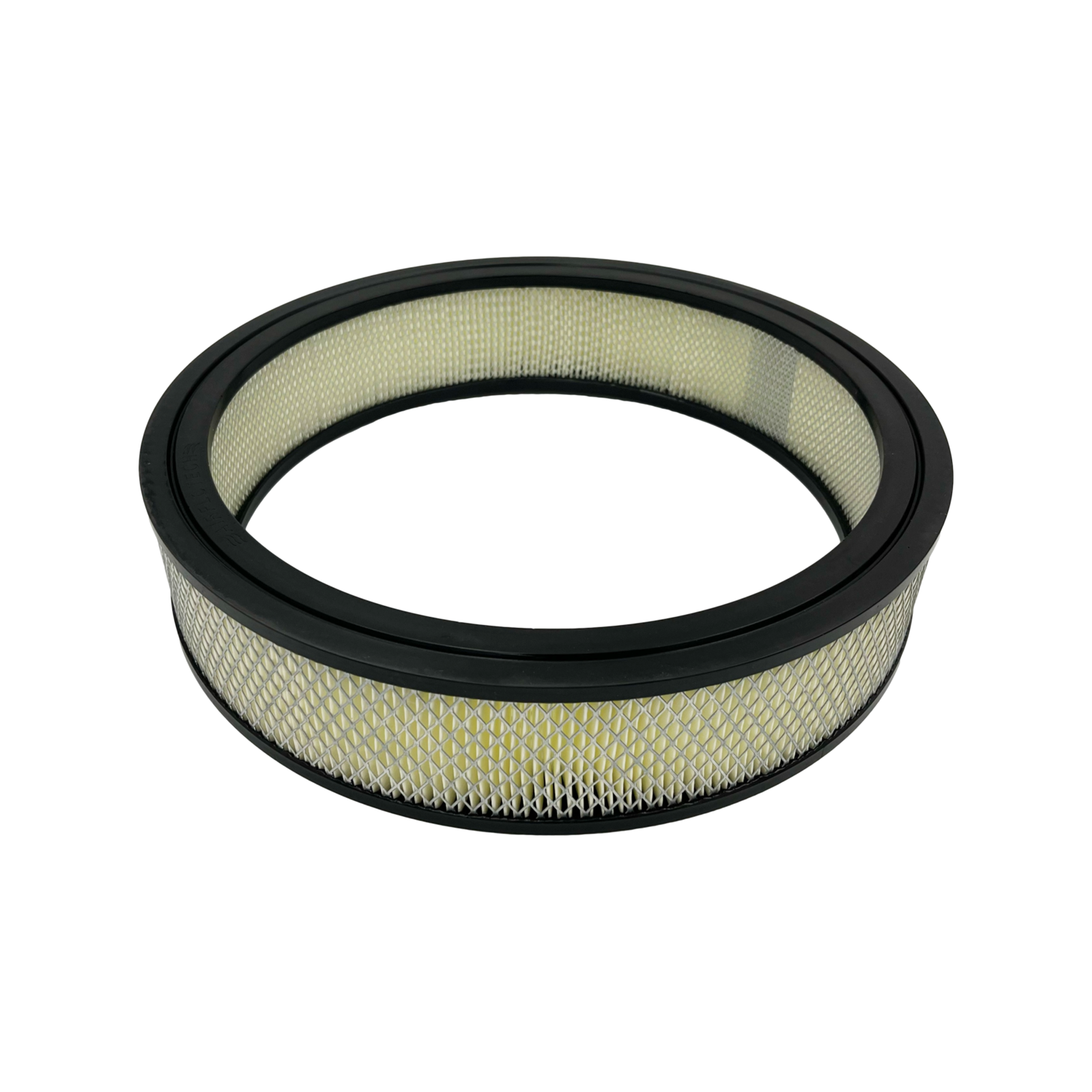

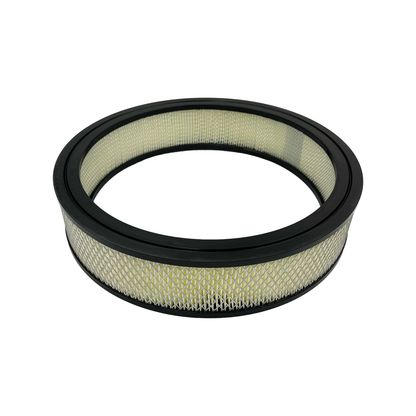

Filter type: Paper element 14x3"
Required clearance above carb flange: 80 mm
Compatibility note: Some Holley, Brawler and Quick Fuel carburettors may require a minimum 5 mm riser for clearance
